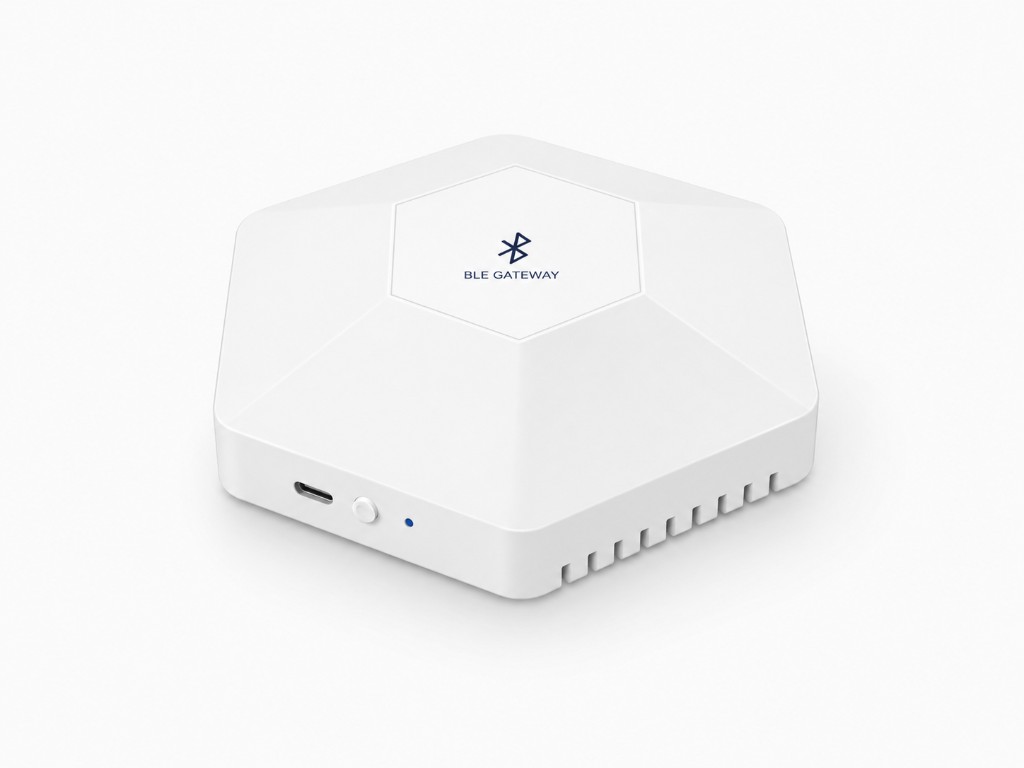

BLE Bridge Gateways

BLE-to-LoRaWAN bridges for tag and beacon fleets.

Outdoor-capable Bluetooth LE bridges that collect nearby BLE tag and beacon traffic and forward it onto the LoRaWAN network toward Cognituv Connect. A fit for hospitals, warehouses, and asset fleets that already use BLE endpoints but need long-range facility backhaul.

How it works

A BLE bridge gateway listens for nearby Bluetooth LE tags and beacons, then relays that activity over LoRaWAN into Cognituv Connect. Battery or DC power and an IP67 outdoor enclosure support deployments where BLE fleets need to join the same sensor backbone as the rest of the site.

Specifications

ConnectivityBluetooth LE; LoRaWAN backhaul

DeploymentOutdoor

Ingress protectionIP67

PowerBattery or DC

AntennaInternal

Operating temperature−20 °C to 60 °C

PlatformStreams to Cognituv Connect
