Facility Intelligence
Cognituv · Protocol Bridge

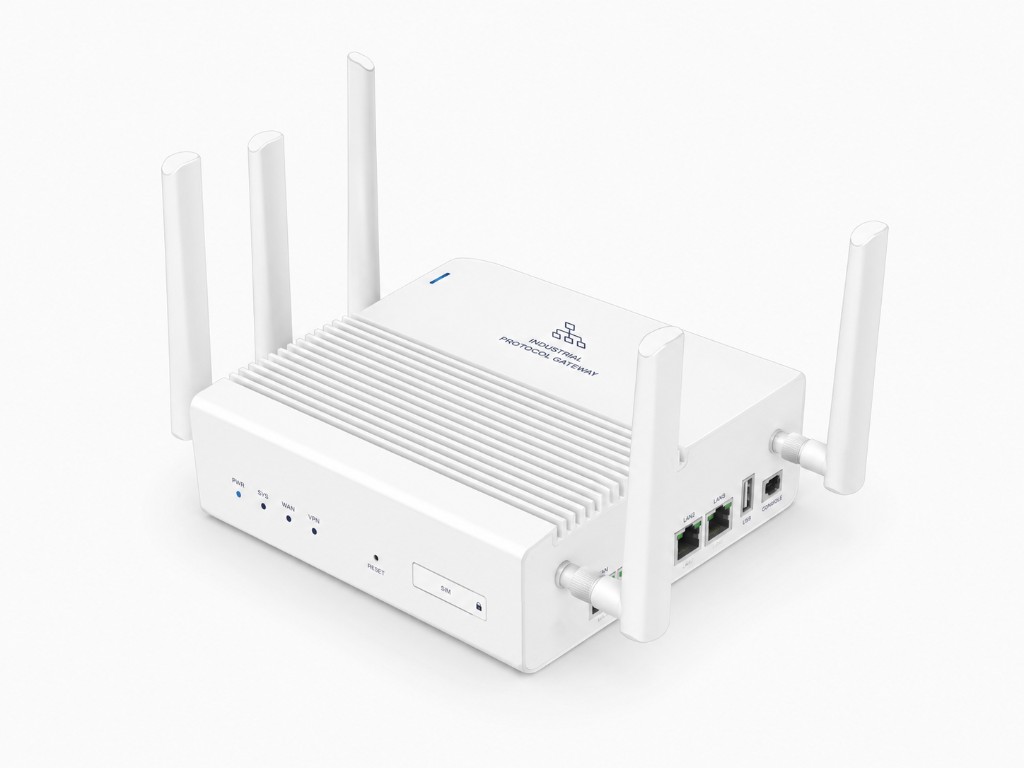

Industrial Protocol Bridges

LoRaWAN bridges for Modbus, BACnet, RS485, and industrial IO.

LoRaWAN protocol bridges that connect Modbus RTU, RS485, mixed industrial IO, and BACnet/IP building systems to Cognituv Connect, so legacy meters, controllers, and BMS points can join the same wireless backbone as battery sensors. Indoor and outdoor models cover plant floors, panels, and control rooms.

How it works

Industrial protocol bridges sit between existing field devices or building automation networks and the LoRaWAN fabric. They speak Modbus RTU and common IO interfaces, and BACnet/IP on select models, then report over LoRaWAN (cellular on select hubs) into Cognituv Connect — or expose LoRaWAN sensor data as native BACnet objects for the BMS — so retrofit points and wireless sensors show up alongside the rest of the site.

Specifications
ConnectivityLoRaWAN (North America); cellular on select models
Supported protocolsModbus RTU; BACnet/IP
IO interfacesRS485; RS232; SDI-12; UART TTL; I²C; 1-Wire; analog in/out; digital in/out; pulse counter (model-dependent)
LoRaWAN classClass A / Class C
Channels1 to 2 (select models)
DeploymentIndoor and outdoor
Ingress protectionIP66 to IP68
PowerBattery, DC, or solar
