Energy Monitoring

CT-clamp power metering for single- and three-phase loads.

CT-clamp LoRaWAN power metering for single- and three-phase circuits, quantifying energy use down to individual equipment, panels and submeters so teams can measure baseline draw and verify the impact of efficiency projects.

How it works

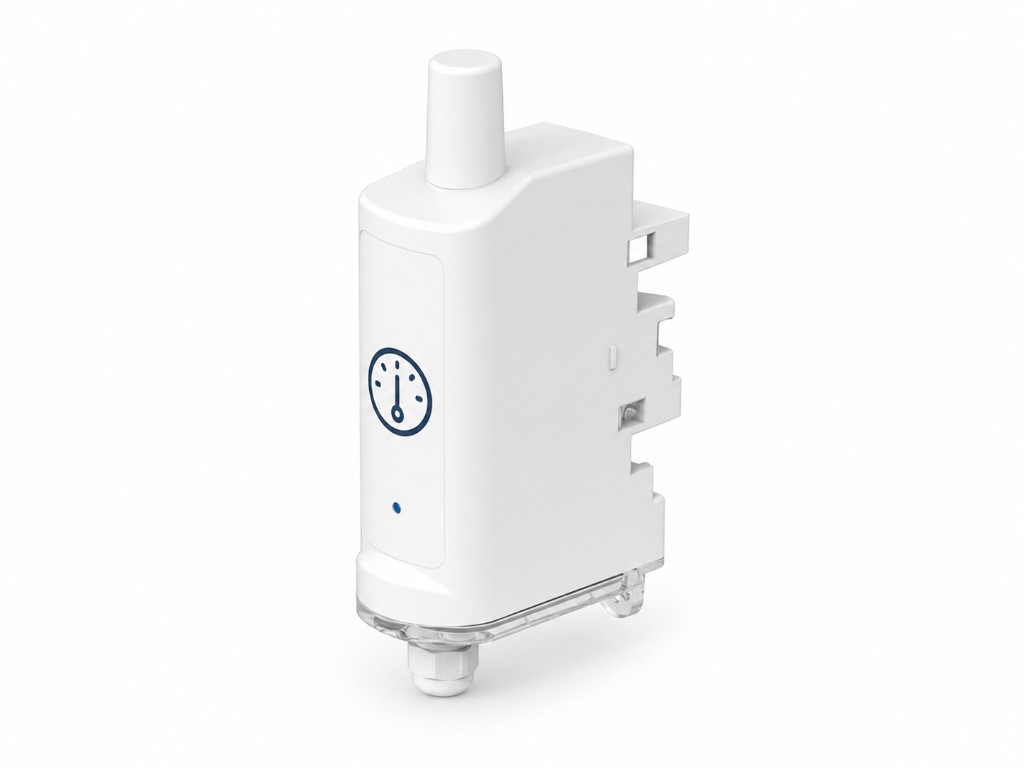

LoRaWAN energy meters measure circuit power and energy with split-core CTs, Rogowski coils, pulse/dry-contact inputs, or meter interfaces across single- and three-phase loads. Readings report into Cognituv Connect so teams can baseline draw and verify the impact of efficiency projects.

Specifications

ConnectivityLoRaWAN (North America); Asia-region variants available

Electrical measurementsVoltage; current; active/reactive/apparent power; active/apparent energy; power factor; frequency

PhasesSingle-phase; three-phase

Metering methodsSplit-core CT clamp; Rogowski coil; pulse / dry contact; meter interface; analog input

Measurement channels1 to 12 (model-dependent)

Max currentUp to 4000 A (model-dependent)

AccuracyFrom ±1% / revenue-grade options (model-dependent)

Ingress protectionIP30 to IP68
