CGUV-FRESHFILTER-TILE
Cognituv · FreshFilter

FreshFilter Ceiling-Tile Purifier

Drop-in 2×2 ceiling-tile UV-C + PCOR purification — passive supply-air or active fan-powered.

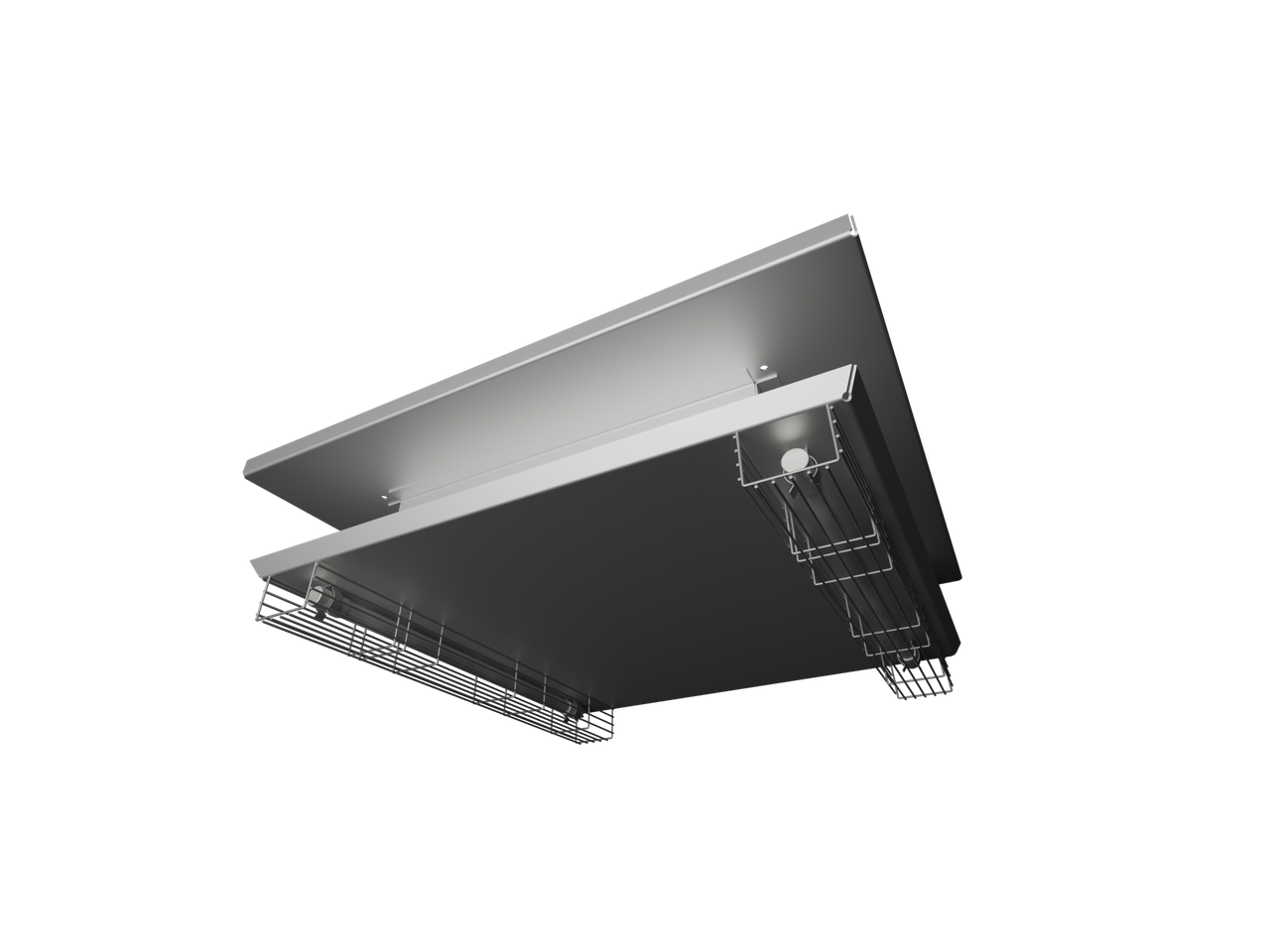

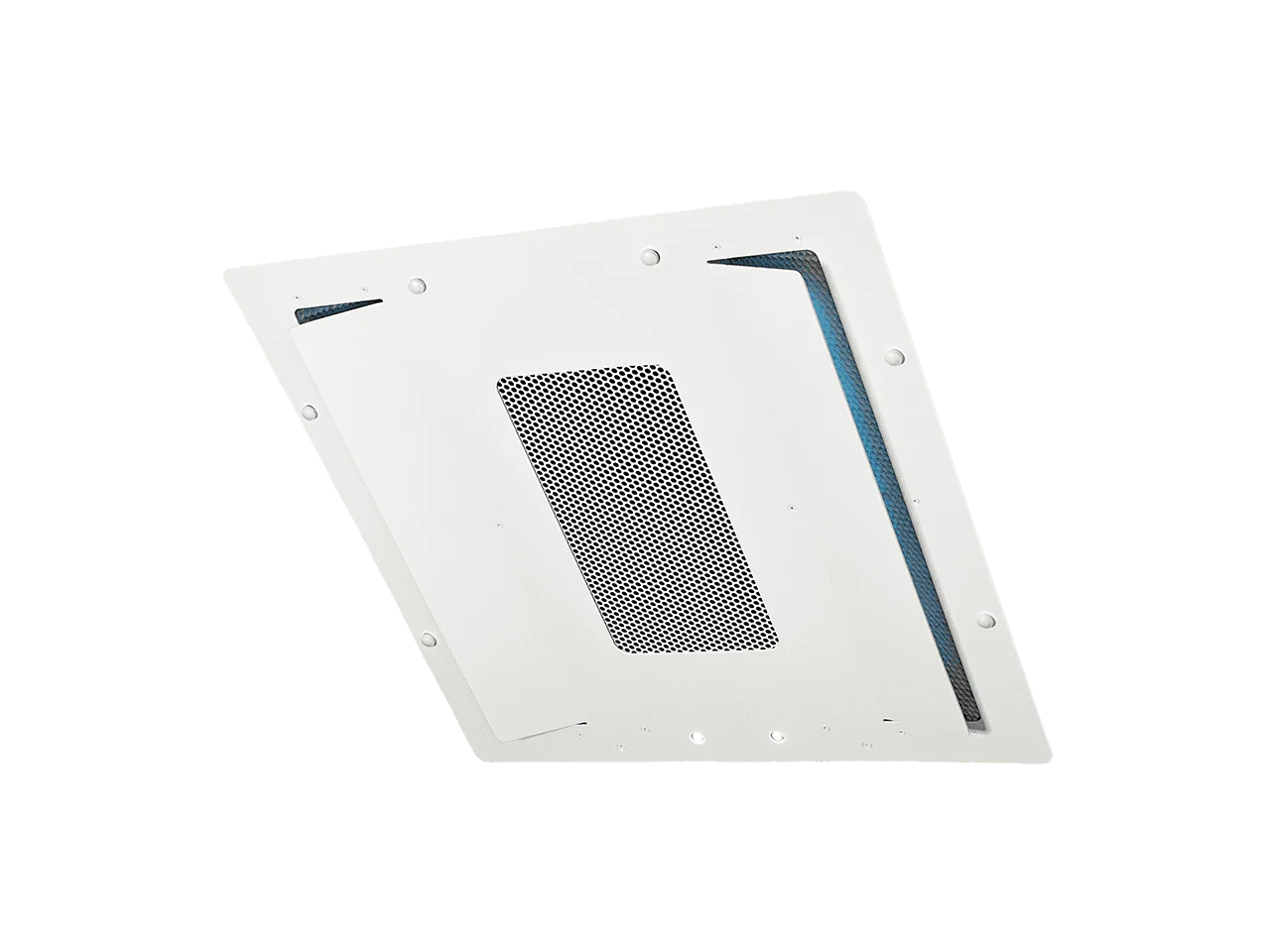

The FreshFilter Ceiling-Tile Purifier brings UV-C disinfection and PCOR photocatalytic air cleaning into a standard 2×2 ceiling grid — a discreet, zero-footprint way to continuously clean the air in occupied commercial spaces. It comes in two configurations for different rooms. The FreshFilter-Tile replaces a ceiling supply diffuser and polishes the HVAC supply air as it enters the room, with optional surface-treatment lamps. The Overwatch 2×2 is a self-contained, fan-powered unit that actively pulls, filters and disinfects room air on its own — no ductwork or fresh-air intake required — covering up to 1,100 sq ft at a quiet 47 dB. Both combine dual germicidal 253.7 nm UV-C lamps with layered PCOR filtration to inactivate pathogens and break down VOCs and odors, and both are Cognituv Connect–enabled for wireless monitoring and verification. A fit for offices, healthcare, schools and hospitality.

How it works

Both configurations pair germicidal 253.7 nm UV-C lamps with PCOR photocatalytic oxidation to inactivate pathogens and break down VOCs and odors. FreshFilter-Tile replaces a ceiling supply diffuser and polishes HVAC supply air as it enters the room. Overwatch 2×2 is a self-contained, fan-powered unit that actively cleans room air — no ductwork required — covering up to 1,100 sq ft at 47 dB.

Specifications
Technology253.7 nm UV-C + PCOR
Form factorDrop-in 2×2 commercial ceiling grid
ConnectivityCognituv Connect (UV-C irradiance + IAQ)
Voltage110–277 VAC (family range)
ComplianceEPA #100510-TX-1 · FDA #3016750569
Tile installSupply-diffuser replacement; requires HVAC ceiling supply
Overwatch installSelf-contained fan unit; no ductwork; up to 1,100 sq ft
Tile lamps2×65W Air; -EX adds 2×40W surface (Air + Surface)
