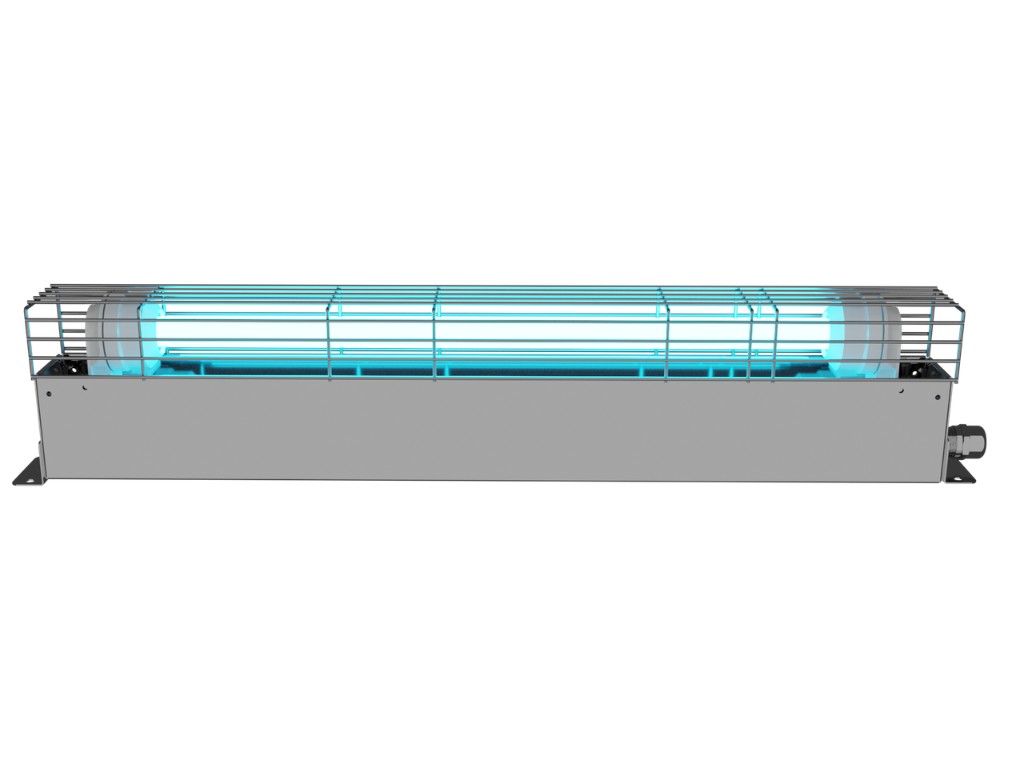

BARRICADE Surface Disinfection Unit

Universal, wet-rated, food-safe UV-C for continuous, uniform surface disinfection.

BARRICADE is a universal, wet-rated UV-C unit that delivers continuous, uniform disinfection of exposed surfaces in demanding environments. Built in AISI 304 stainless steel, rated to IP65, and using a selective high-efficiency 253.7 nm UV-C lamp with a food-safe FEP coating, it's engineered to withstand moisture, washdown and intense UV-C exposure. Mounted on a wall or ceiling — or specified as a mobile unit — it provides steady, non-contact surface pathogen control for food-contact and back-of-house areas, reducing reliance on chemical sanitizers while supporting yield, quality and compliance. It comes in a compact 40W model (75–140 sq ft coverage), a 90W industrial barrier model for larger areas, and a mobile version for flexible, roll-in disinfection.

How it works

BARRICADE directs a selective high-efficiency 253.7 nm UV-C field, shaped by a mirror-bright aluminum reflector, to deliver even germicidal coverage across exposed surfaces — continuous, non-contact pathogen control for wet, washdown environments.

Specifications
FamilyCGUV-BARRICADE (40A · 90 · Mobile)
Wavelength253.7 nm UV-C, food-safe FEP coating
Lamp (40A)Selective high-efficiency 40W
Lamp life16,000 hours
Power (40A)40 W
Voltage110–277 VAC
Coverage (40A)75–140 sq ft · 700–1,400 cu ft
ProtectionIP65 · AISI 304 stainless steel
