Water Treatment
Cognituv · GRID

GRID Ice-Machine Disinfection

In-machine UV-C that continuously disinfects commercial ice machines — chemical-free, between cleanings.

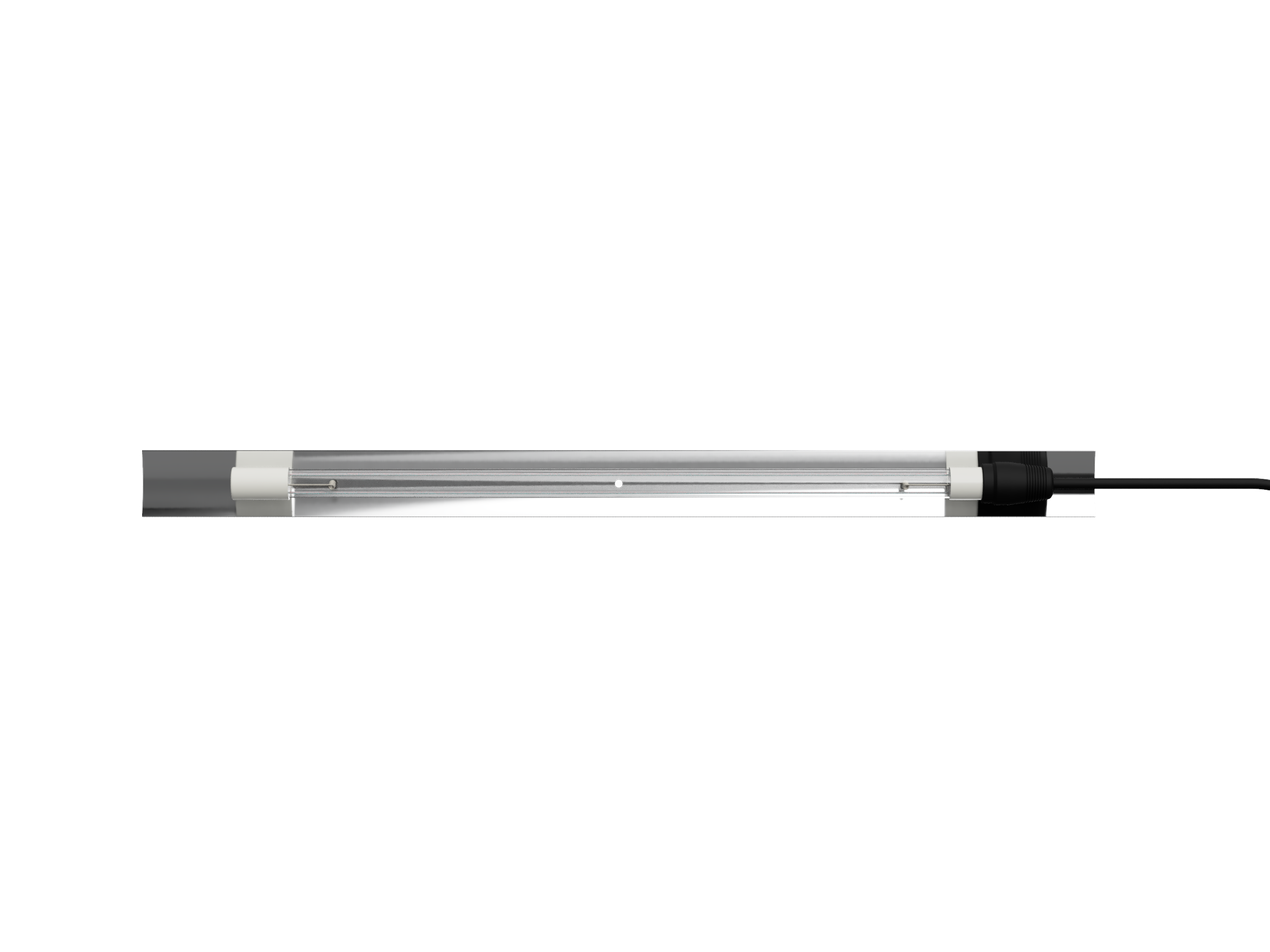

GRID Ice-Machine Disinfection is a germicidal UV-C device that installs inside a commercial ice machine to continuously disinfect it. A quartz-enclosed, Teflon-coated 40W high-output 253.7 nm UV-C lamp deactivates the DNA of the bacteria and mold that colonize cold, wet ice systems so they can't reproduce — cutting 90% of microbes within 10 minutes and 99.9% within 24 hours. Continuous in-machine treatment reduces the frequency and cost of deep cleanings, improves ice hygiene and taste, eliminates ice odor, and lowers the contamination and liability risk of foodservice ice — all without chemicals. A water-resistant lamp, 110–277 VAC multi-voltage power supply, magnetic reflector bracket and safety interlock adapt it to a range of ice-machine designs.

How it works

GRID Ice-Machine mounts a quartz-enclosed 40W high-output 253.7 nm UV-C lamp inside a commercial ice machine and runs it continuously — penetrating bacteria and mold and deactivating their DNA so they can't reproduce. It cuts 90% of microbes within 10 minutes and 99.9% within 24 hours, keeping the machine sanitary between cleanings — chemical-free.

Specifications
ModelGRID-1-40WH-ICE
Lamp40W high-output 253.7 nm UV-C · quartz enclosed · non-ozone generating · FEP (Teflon)-coated
Lamp length / qty18 in / 1
Electrical0.82 A @ 110 V – 0.38 A @ 240 V · 50/60 Hz · 40W
Voltage110–277 VAC (multi-voltage)
Performance90% microbe reduction in 10 min · 99.9% in 24 hr
MountingMagnetic reflector bracket · adapts to various ice-machine designs
Power supplyMagnetic-mount, with two lamp cables · 8 ft power cable with connector
