Model
CGUV-MASS-90
Cognituv · MASS

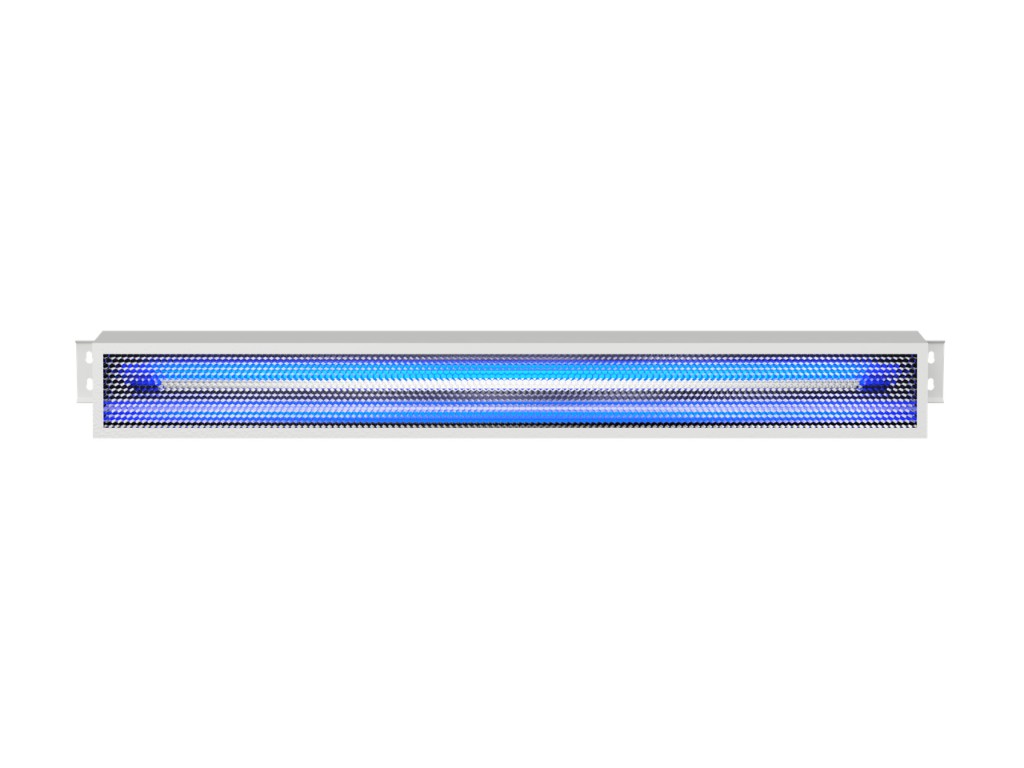

MASS Upper-Air Purifier

Wall or ceiling upper-air UV-C that continuously disinfects the air in occupied rooms.

MASS is a low-profile upper-air UV-C system that continuously disinfects the air in occupied rooms — safely, 24/7, above the presence of people. Mounted on the wall (or ceiling), it directs a high-output 253.7 nm UV-C field across the upper air of the room, where the building's natural convective air movement carries room air up through the germicidal zone and back down clean. Because the UV-C is confined above head height, it treats the air while people occupy the space below — no room downtime. Built with a pure bright-mirror aluminum reflector for maximum output, an IP55 dust- and water-protected housing, and silent operation, MASS is suited to high-traffic occupied rooms and Class 1 installations. It comes in a 40W version for smaller areas and a 90W version for broader coverage (250–500 sq ft), in wall or ceiling-mount configurations, and in white or stainless steel finishes.

How it works

MASS projects a high-output 253.7 nm UV-C field across the upper portion of the room, above occupants. Natural convective air currents carry room air through that germicidal zone and back down — so the space is treated continuously while people occupy it below.

Specifications
FamilyCGUV-MASS (40W · 90W wall)
Wavelength253.7 nm UV-C
Lamp (90W)High-output 90W
Lamp life16,000 hours
Power (90W)79 W
Voltage120–277 V
Coverage (90W)250–500 sq ft; 40W for smaller areas
ProtectionIP55
